pfodWeb — User Guide
pfodWeb is a browser-based interface for connecting to and
interacting with pfod-compatible devices. It supports pfod drawings,
pfod menus, live charting of CSV data, and offline plotting of saved CSV
files.
pfodWeb is served by pfodProxy — a small local
application that runs on your computer and acts as a bridge between your
browser and your pfod device. The browser connects to pfodProxy over
HTTP; pfodProxy handles the actual device communication for Serial, BLE and
TCP connections. For HTTP connections the pfodProxy is not needed (or used).
1. Starting pfodProxy
For non-HTTP connections pfodProxy must be running before you can use pfodWeb. Start it for your operating system:
| OS | How to start |
|---|
| Windows |
Double-click pfodProxy.exe. A console window opens showing the proxy status, and pfodWeb opens automatically in your default browser. |
| macOS |
Double-click pfodWeb.app. pfodProxy starts in the background and pfodWeb opens automatically in your default browser. |
| Linux |
Run ./pfodProxy from a terminal. pfodWeb opens automatically in your default browser. |
pfodProxy listens on http://127.0.0.1:4989/ by default. To use a different port, pass the port number as an argument:
| OS | Custom port example |
|---|
| Windows | pfodProxy.exe 5000 |
| macOS (from Terminal) | pfodProxy.app/Contents/MacOS/pfodProxy 5000 |
| Linux | ./pfodProxy 5000 |
Already running? If pfodProxy is already running and you launch it again, it detects the existing instance and simply opens a new browser tab to the running proxy — no second instance is started.
Stopping pfodProxy
Once opened the pfodProxy stays open until closed manually or close with the pfodWeb Close pfodProxy button.
2. Connection Setup

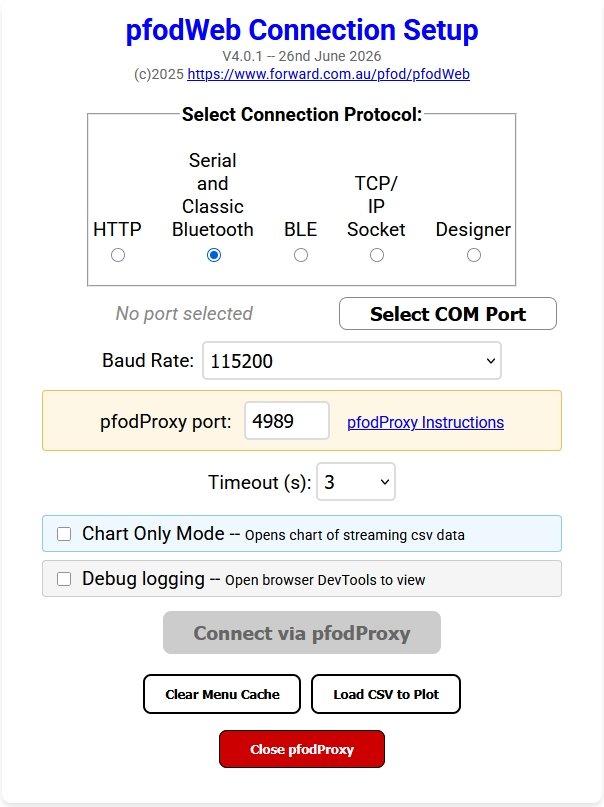

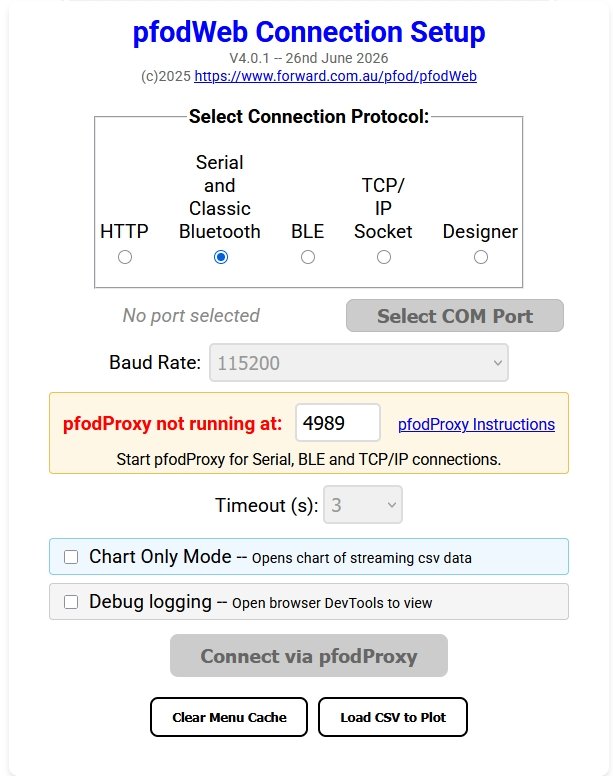

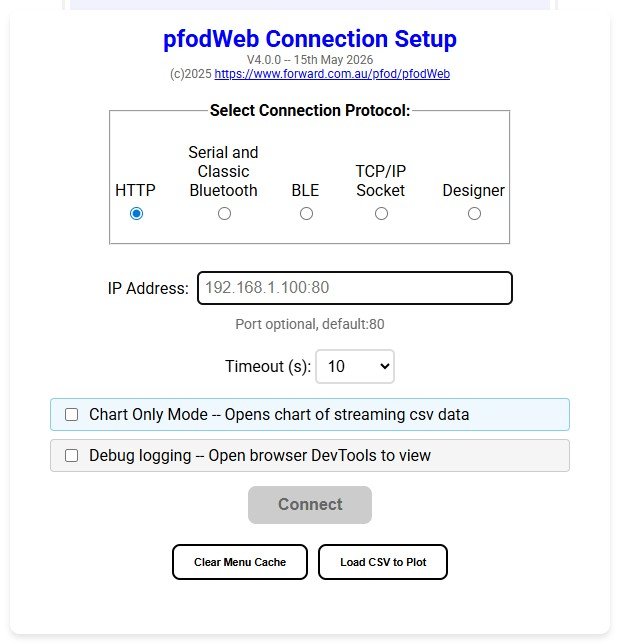

When pfodWeb opens it shows the Connection Setup screen. Configure your connection here before connecting to a device.
Protocol Selection
Choose how pfodWeb communicates with your device:
| Protocol | Description | Supported Browsers |
|---|
| HTTP |
Connects directly from your browser to a device over Wi-Fi using HTTP.
Enter the device IP address (e.g. 192.168.1.100) or hostname and port. pfodProxy is not used for this transport — the browser communicates with the device directly.
Then click the Connect button |
All browsers (Chrome, Firefox, Safari, Edge) since 2017 |
| Serial |
Connects to a device via a USB serial port. pfodProxy handles the serial communication.
Click Select COM Port to choose from the ports pfodProxy can see.
Then select the baud rate and then click the Connect by pfodProxy button |
All browsers |
| BLE |
Connects to a Bluetooth Low Energy device. pfodProxy handles the BLE communication.
Click Select BLE Device to scan for nearby devices and select one.
then click the Connect by pfodProxy button. |
All browsers |
| TCP |
Connects to a device over a TCP socket (Wi-Fi). pfodProxy opens the TCP connection. Enter the device IP address and port (default 4989).
Then click the Connect by pfodProxy button |
All browsers |
| Designer |
This connection does not use pfodProxy. It opens the built-in menu designer where you can create menus, sub-menus, charts, etc, connect board pins and then generated the complete Arduino Sketches |
All browsers |
Note: For Serial, BLE, and TCP connections, pfodProxy relays data between the browser and device over a local SSE (Server-Sent Events) stream. The browser itself does not need Web Serial or Web Bluetooth support — pfodProxy handles all device communication.
via pfodProxy port
For Serial, BLE, and TCP connections, the via pfodProxy port field shows the port pfodProxy is listening on (default 4989). Change this only if you started pfodProxy on a different port.
Timeout
The Timeout dropdown sets how long pfodWeb waits for a response before treating the connection as failed. Default is 10 seconds for HTTP and 3 seconds for Serial/BLE/TCP. Increase the timeout if your device responds slowly.
Chart Only Mode
Tick Chart Only Mode to skip the pfod main menu and go straight to the chart display after connecting. Use this when your device only sends CSV chart data.
Bookmarking Your Connection Settings
After connecting, pfodWeb updates the page URL to include your current settings as query parameters (e.g. ?proxy=4989&serial=115200 or ?targetIP=192.168.1.100). If Chart Only mode was selected and a chart configuration has been applied, the URL also includes a &chart=… parameter.
Bookmark this URL to reopen pfodWeb with the same settings pre-filled. Opening the bookmark shows the Connection Setup screen with your settings already filled in — click Connect to connect immediately.
Buttons
| Button | Description |
|---|
| Connect or Connect by pfodProxy | Connects to the device using the selected protocol and settings. |
| Clear Dwg Cache | Clears any cached pfod menu/drawing definitions stored
in the browser.
Use this if restarting/reprogramming the pfodDevice or if the menu or dwgs appear stale or corrupted. |
| Load CSV to Plot | Opens a file picker to load a previously saved pfod CSV data file and display it as a chart — no device connection needed. See Section 6. |
| Close pfodProxy | Shuts down the pfodProxy. Only shown when pfodProxy running. |
3. Browser and Operating System Requirements
Browser -- pfodWeb works in any modern browser, Chrome/Chromium, FireFox, Safari and Edge from 2017 onwards.
No special browser permissions or flags are needed for Serial, BLE, or TCP connections.
The pfodProxy handles all device communication on behalf of the browser.
Operating System -- pfodProxy runs on Windows, MacOS (Intel/Apple), Linux OS's from 2017 onwards
4. Main Display Layout
After connecting, pfodWeb shows the device's main menu.
This varies depending on what the device serves.

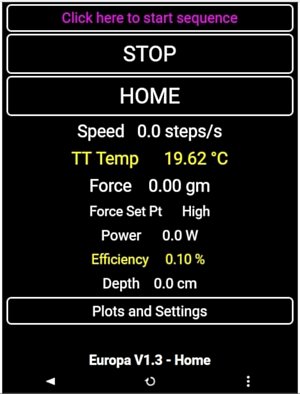

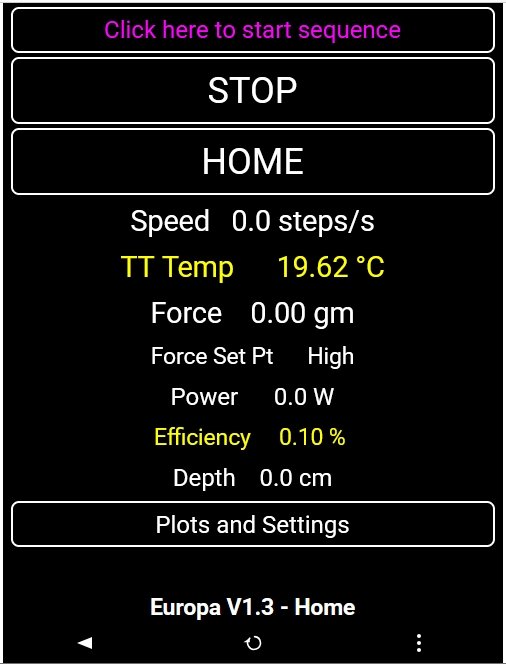

These examples are the main menu of the
Europa Ice Sampling Prototype

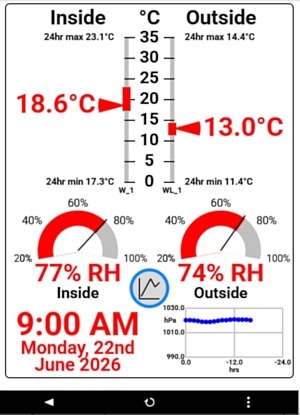

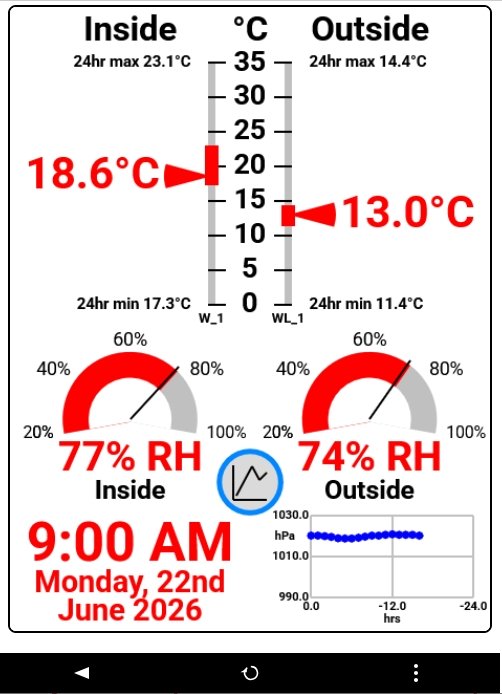

and a home
Weather Station
Side Panel (optional)
An optional side panel can be opened from the three-dot menu. When open, the display splits into two panes:
- Left pane — the device's menus or charts.
- Right pane (side panel) — shows the Raw Message viewer or Chart Configuration panel. Drag the divider left or right to resize.
Display Modes
| Mode | What is shown |
|---|
| Menu mode | pfod menus rendered on rectangular mobile-phone style display. |
| Chart mode | Live or frozen chart(s) of CSV data received from the device. See Chart Mode Guide for full details. |
5. Toolbar
A black toolbar runs along the bottom of the canvas pane. The buttons shown depend on the current display mode.
All Modes
| Button | Description |
|---|
| ◀ |
Go back — resends the previous pfod command to return to the previous menu. Disabled in Chart Only mode. |
| ⋮ |
Opens a context menu. Options depend on the current display mode:
Menu mode: Open Raw Message viewer, or switch to chart display.
Chart mode: Open Raw Message viewer or Chart Configuration panel.
|
Menu Mode Only
| Button | Description |
|---|
| ↺ |
Resends the last pfod command to refresh the current menu. |
Chart Mode Only
| Button | Description |
|---|
| ⏮ |
Step back — shifts the frozen display window back by 40% of the current Display Points. Only enabled when frozen. |
| Freeze / Freeze |
Toggles freeze on/off. When frozen the button turns red and the display window is locked. Live data continues to be collected. Click again to unfreeze and return to the live view. |
| ⏭ |
Step forward — shifts the frozen display window forward by 40% of the current Display Points. Only enabled when frozen. |
Tip: For full details on chart freeze, zoom, and configuration see the
Chart Mode Guide.
6. Load CSV to Plot
pfodWeb can plot data from a CSV file saved by a previous session (or any other compatible CSV file) — no device connection is required.
- From the Connection Setup screen, click Load CSV to Plot.
- Choose a CSV file from your computer (files saved by pfodWeb are named
pfod-csv-Nfields-<timestamp>.csv).
- pfodWeb opens directly in chart mode and plots the data. All chart features (freeze, zoom, Chart Configuration) are available.
Note: In CSV mode there is no device connection. All data comes from the loaded file. pfodProxy does not need to be running.
7. Side Panel

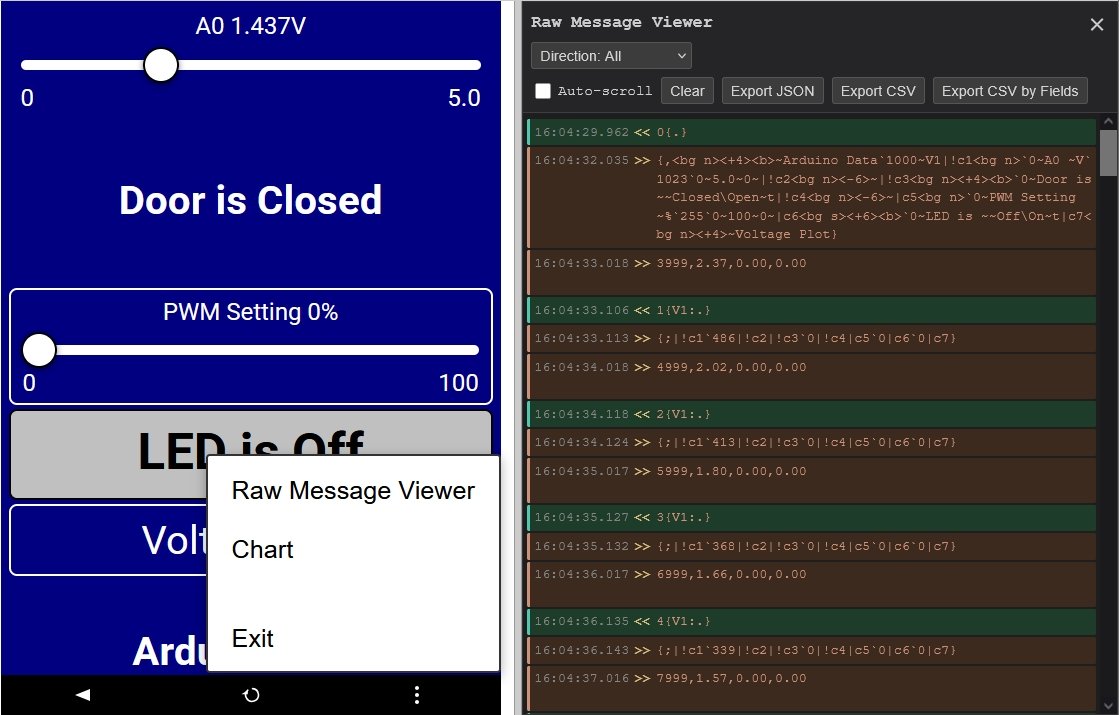

The side panel on the right opens when you choose Raw Messages or Chart from the three-dot menu in Menu mode. In Chart mode the choices are Raw Messages or Chart Configuration. Drag the divider to give it more or less space.
Raw Message Viewer
Shows the raw pfod messages exchanged with the device, useful exporting plot data and for diagnosing protocol issues. See Chart Mode Guide
Chart
Switches from Menu display to Chart display. When using the ... menu to switch to Chart display, the chart by default shows the csv plot data with the largest number of fields.
To display formatted charts, use a pfod Chart button (available in Designer) in a menu

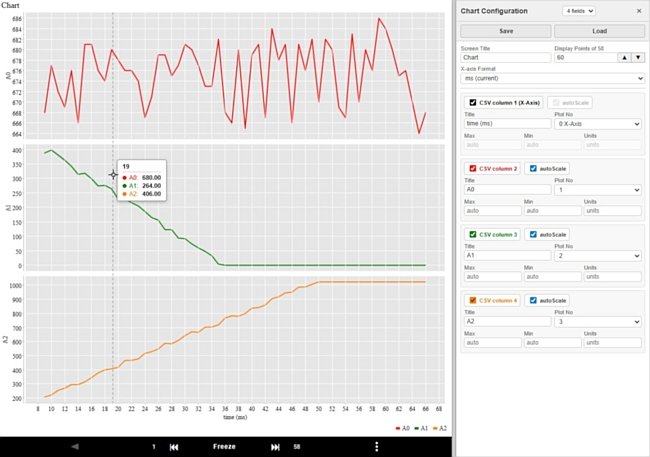

Chart Configuration
When in Chart mode, Chart Configuration lets you customise the chart —
set the title, display points, X-axis format, and per-field settings (label, plot number,
Y-axis limits, units). Changes take effect when you press Enter, move to another field, or after 5 seconds.
See the Chart Mode Guide for full details.
8. Quick Reference
Connection Setup at a Glance
| Setting | Description |
|---|
| Protocol | HTTP, Serial, BLE, or TCP |
| IP Address / Port | HTTP and TCP — device IP address and port |
| Baud Rate | Serial only — select before clicking Connect |
| via pfodProxy port | Serial, BLE, TCP — port pfodProxy is listening on (default 4989) |
| Timeout (s) | Response timeout in seconds (3, 5, 10, 20, or 30) |
| Chart Only Mode | Skip menus and go straight to chart display |
Toolbar Quick Reference
| Button | Mode | Action |
|---|
| ◀ | All (disabled in Chart Only mode) | Go back — resend previous pfod command |
| ↺ | Menu | Resend last command |
| ⏮ | Chart (frozen) | Step back 40% of Display Points |
| Freeze | Chart | Lock / unlock display window |
| ⏭ | Chart (frozen) | Step forward 40% of Display Points |
| ⋮ | Menu | Open Raw Message viewer or switch to chart display |
| ⋮ | Chart | Open Raw Message viewer or Chart Configuration |
