Greg emailed with this outline of how he is using pfodApp to control the circulation, ventilation and humidity in his house.

Circulation Ventilation Humidity Control (CVHC)

Intent:

Control the air circulation, ventilation and humidity in a more sophisticated manner than the current configuration.

Original Control Scheme:

Circulation

• Furnace fan manual switch.

• Static timer on furnace fan after burner shutdown.

Ventilation

• 5 inch duct from cold air plenum to outside – manual damper.

• Exhaust fan manual switch.

Humidity

• Humidifier – Wall mounted humidistat controller with manual setpoint activated when furnace burner runs.

Modified Control Scheme:

Circulation

• Compare upstairs temperature with basement temperature and activate furnace fan to equalize temperatures.

• Control furnace fan based on hot plenum temperature rather than a simple furnace timer.

Ventilation

• 24 VAC damper controlled based on humidity level.

• Activate exhaust fan to draw in outside air if outside temperature is below inside temperature when cooling is desired.

Humidity

• Humidifier – Activated when furnace fan runs. Humidity setpoint is automatically adjusted based on outside temperature.

• Interlock humidifier if excessive condensation forms on windows.

Instrumentation Requirement:

• Monitor temperature in multiple locations including each level of the house.

• Monitor the humidity.

• Monitor window condensation.

• Control the furnace fan.

• Control the humidifier.

• Installation and control of a fresh air inlet damper.

• Control the plenum exhaust fan.

Interface Specification

• Graphical interface via a tablet or phone accessible via internet.

• Alerting of extreme or abnormal conditions via text messaging.

• Long term history collection of all pertinent parameters.

• A flexible means of plotting measured variables and system states for analysis.

Hardware

• Arduino Uno with 32K of program memory.

• Ethernet shield.

• 7 DS18S20 One-wire temperature sensors.

• 1 Honeywell HIH-4000 humidity sensor.

• 1 HDS10 condensation sensor.

• 1 PowerSwitch Tail II 5 VDC/120 VAC solid state relay.

• 4 channel 5 volt relay board.

• 1 AC Sensor Split Core Current Transformer SCT-013-000 0-100A.

• 1 24 VAC relay.

• 1 small breadboard.

• 7805 linear voltage regulator.

• LM324 general purpose opamp.

• Assorted resistors, capacitors, diodes etc.

Software

• pfodApp android app.

• Python 3.3

• Arduino IDE.

pfod Interface Overview – Sample Screenshots

Main Menu	Sensors – Current Value	Sensors – Rate of Change
Sensors – Minimum	Sensor – Maximum	Actuators

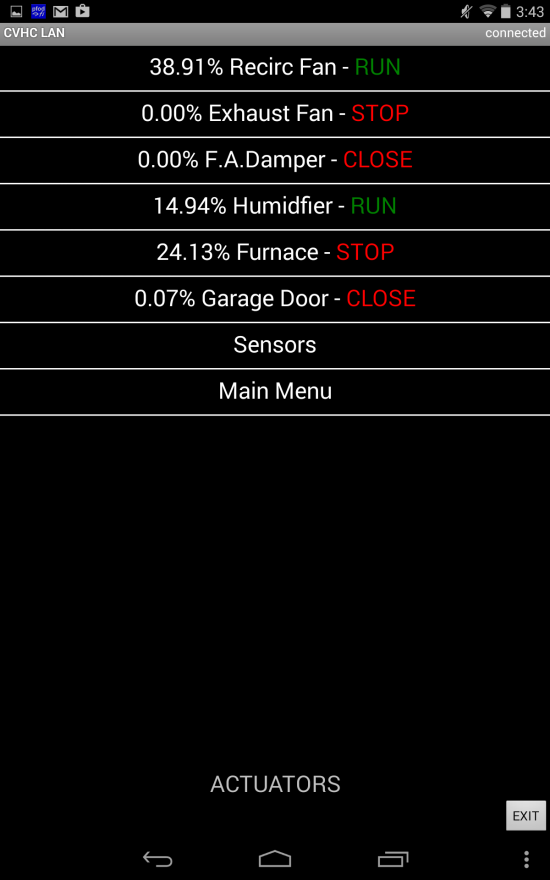

Recirculation Fan	Recirculation Fan - Setpoints	Recirculation Fan – Mode
Humidifier – Setpoints	Time	Charts

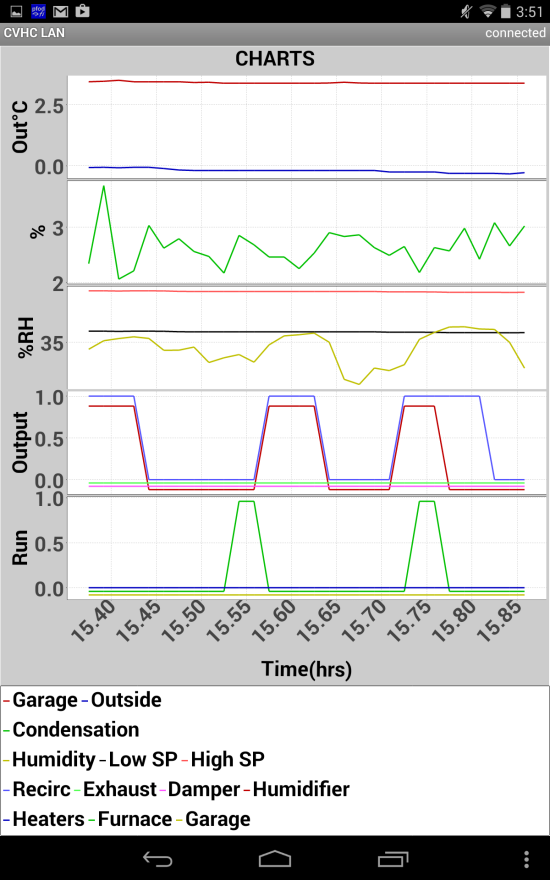

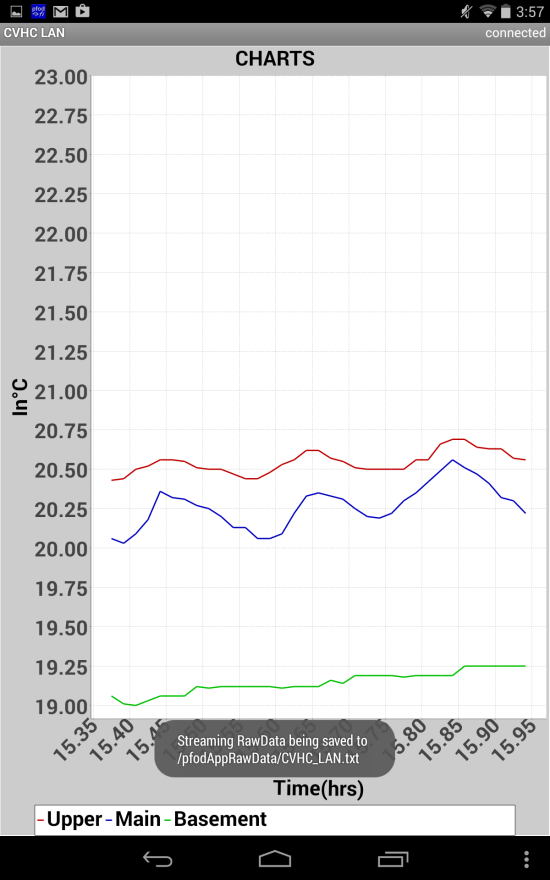

Charts – Configure	Charts – Plot
Charts – Configure	Charts - Plot
Charts – Configure	Charts – Plot
